Crash course on design - Stanford d.School

One of my colleagues from WorkerExpress, Joe Mellin, invited me to join him for a design workshop being put on by the Hasso Plattner Institute of Design at Stanford. Joe is a former graduate of the d.School's masters program. I'm interested in design and I even taught principles of user-centered design for a Human Computer Interaction course at the University of Victoria, so I was keen to join him.

I really had no idea what the day would entail, I just knew to show up at 9am and I'd be done sometime around 1pm. Arriving at the workshop, I discovered there were to be over 100 people involved. We were instructed immediately that we'd be breaking up into three different groups. Once in those groups, we were told that we would be led through a full design cycle with a target demographic of potential users (see picture of design process below). Our goal was simply to design a new holiday experience for kids. The d.School had arranged to have approximately 80 students ranging from around 11 to 17 years of age to be our volunteer users.


After this brief instruction, we were put into groups of four, where we quickly introduced ourselves, and then had to come up with interview questions to ask the kids that would soon be arriving to talk to us. Each group was also assigned a "d.leader", i.e. a student at the d.School, to help guide us through the process.

One of the really interesting things about the d.School is that it brings together people from very diverse backgrounds to teach them how to become design experts. The workshop today was able to mimic that as each person in my group had very different backgrounds than myself. One was an MD now doing his MBA at Stanford, one was currently working in the medical school at Stanford, one works at Google, and finally there's me, a reformed academic now working at a start-up.

We only had about 5 minutes to prepare for the interviews, then we interviewed two different pairs of students for about 15 minutes each. We asked them about their holidays, what were their likes/dislikes, did they miss school during the holidays, what was their favorite holiday ever, were their family around during the holidays, and so forth.

Actually talking to users is always interesting and usually surprising. We had two very different groups of users. Our first group were two 12 year old boys. Their parents were generally quite busy with work over the holidays so family time was limited. They were basically left to their own devices. In contrast, our second group were two 12 year old girls that spent their holidays traveling all over the world with their families.

Here's a picture of the notes we took during the interviews. Although difficult to tell, the sticky notes are organized into four different groups: feeling, quote, thought, and action.


Following the interviews, all the groups came back together to be quickly introduced to the next part of the design process: defining our user, their needs, and the insight about the problem. Although the users from our interviews had very different holiday experiences, there were some common themes. For example, all of the students mentioned that they sometimes get bored during the holidays. They sometimes miss school because they get to see their friends at school, but not as regularly over the holiday. They also sometimes didn't seem to know what to do with their time following Christmas celebrations.

Taking these themes into account, we determined that our users were extremely bright, junior high students that needed interaction and socialization in a world where they did not know how to choose what activities they do during the holidays (or something to that effect, can't remember exact phrasing).

After our point of view was established, we brainstormed ideas for how to possibly address it (see picture below). We had crazy ideas like group travel for kids, city-wide laser tag, to more tangible solutions like a community center that organizes activities. We eventually settled on proposing an online application that was able to combine a lot of our ideas. The idea was to create a market place for kids to be able to express interest in participating in certain activities. Once enough kids expressed interest in a particular activity, all the leg work for actually making that activity happen would be handled by us, which could include transportation, equipment, some supervision, and so forth. Another way to think about it would be summer camp, but coordinated completely online and based on your personal interests.


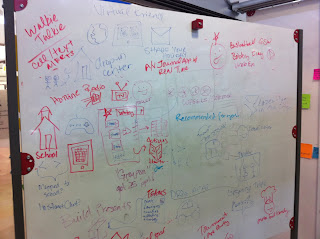

Using this idea as a basis, we designed a prototype and then interacted with different students to test the prototype. This time we had three high school girls as our users. These girls were pretty incredible, one even stated, "this seems to add a level of complexity that's unnecessary". Only in Palo Alto, California would that statement be in a 17 year old females vocabulary!

All in all, it was an extremely fun and interactive workshop that I highly recommend if you get the chance. I'd love to have all WorkerExpress engineers participate in this workshop as they join the company. It's a great way to learn the basics of user-centered design.

Check out the video below. As an exercise to get us ready for brainstorming we played rock, paper, and scissors. Everyone starts as an individual competitor. When you lose, you become the winner's biggest fan. The video below is at the end of the day when there were only two left standing.

ACM ICPC Pacific Northwest Regional Competition

Although I was not heavily involved in the ACM ICPC competitions this past Fall, I followed the Pacific Northwest regional quite closely. Several of my former students were competing for the University of Victoria team and of course my new university (Stanford) was also competing.

UVic had a great start to the competition, but ran into issues in the second half and ended up finishing in 9th. However, given that the university has only recently started competing in the ACM ICPC competitions, a 4th place finish in 2009 followed by a 9th place finish in 2010 is a pretty fantastic result.

The contest this year was quite interesting in a variety of ways. First, for the first time in a very long time the top team was not Stanford or the University of British Columbia. Second, although Stanford Red solved problem D at the 18 minute mark, there was 230 submissions for this problem, and only 3 were deemed correct. To anyone with much experience in these types of contests, this result looks a little fishy.

Rather than recap all the events and outcome, I'll point you to Brad Bart's (SFU coach) recounting and interpretation of the events: http://www.cs.sfu.ca/news/events/ACM/2010/.

I am personally not very happy with the way this screw up has been handled by the ACM ICPC. If you have an opinion, post it to the comments or better yet let ACM ICPC know what you think.

Semantic Search - For Reals?

Recently a project I am involved in at Stanford participated and won the Semantic Web Challenge at the International Semantic Web Conference. The Semantic Web Challenge is a competition for Semantic Web applications. For the uninformed, the Semantic Web "is a group of methods and technologies to allow machines to understand the meaning - or 'semantics' - of information on the World Wide Web". Essentially, the Semantic Web hopes to move web applications beyond simple syntax to actually supporting the "meaning" behind content.

In the challenge, the focus is not so much on the technical or research aspects of the tools, but more on their usefulness for target users. The challenge helps demonstrate what semantic technologies can bring to society.

Our application, NCBO Resource Index: Ontology - Based Search and Mining of Biomedical Resources, is a semantic search application for biomedical researchers (check out the video below). I designed and developed the user experience and interface.

The application allows researchers in the biomedical sciences to perform "concept-based search" over 22 different biomedical resource databases. Thus, rather than a researcher typing in keywords, the researcher would type in concepts from their domain of interest, those concepts come from ontologies, the backbone of the Semantic Web. For the sake of simplicity, an ontology is a structured terminology that describes the terms within a specific domain, the properties of those terms and the relationships between them.

In terms of user interaction and searching, the behavior is quite similar to conventional search engines like Google. The difference being that when you select a term from the auto-completion drop down, that term comes from an ontology that was used to index elements within the various biomedical resources. I also included helpful tag clouds (see figure below) for visualizing related concepts to your current search query and I use color intensity to represent more relevant resources based on your current search terms.


The power of the search tool comes from how the index gets constructed. The National Center for Biomedical Ontology maintains a project called BioPortal. This project is an open library of more than 200 ontologies in biomedicine. Using the terms from these ontologies as our term-base, we automatically annotate or "tag" textual descriptions of the data residing within the elements of the 22 biomedical resources. These could be things like patient records, gene expression data, research articles, clinical trials, etc.

These annotations act as a link connecting an ontology term to a data element. The really useful part of this process and also where the semantics begin to play a role, is that we can use the structure of the ontology to expand these annotations. So, rather than getting a simple keyword like "breast cancer" mapping to a particular clinical trial, we also know any synonyms of "breast cancer" described in the ontology. We can also use the hierarchy of the ontology to link more general or specific terms to the resource like "cancer" or "melanoma". Finally, we can use mappings between multiple ontologies to discover other related terms.

This is truly where the power of ontologies can be seen and where a semantic approach to search can be very useful. For example, searching for the keywords "retroperitoneal neoplasm" within the Gene Expression Omnibus website will return zero results. However, the same search in our tool will retrieve relevant results annotated by the child term of "retroperitoneal neoplasm" from the NCI Thesaurus, "pheochromocytoma". Results are scored based on the distance of the matching annotation from a given search concept.

Another big advantage to our application is that the ontologies form a "semantic bridge" between very different biomedical resources. One search execution automatically gives you access to 22 different databases, allowing a researcher to explore relationships between things like gene expressions and clinical trials relevant to a specific concept. Without this, researchers are forced to open up multiple web pages and search each database independently.

Of course all these annotations take a long time to index and it results in a boat load of data. The current index is stored in a 1.5 terabyte MySQL database that contains 16.4 billion annotations, 2.4 million ontology terms, and 3.5 million data elements (stylized graphic below). Other members of the team have worked to figure out clever ways to do a lot of this indexing rather efficiently. You can read about it in Paea Lependu's paper Optimize First, Buy Later: Analyzing Metrics to Ramp-up Very Large Knowledge Bases.


We are working to include more resources in the index and also speed up the search support. If you're interested in playing with the application, check it out in the BioPortal integration.
